Incremental Linear Encoders
    The incremental linear encoders counts the measuring step from from the origin or define current position by calculating the number of signal cycles after subdivision. The incremental linear encoders or encoders of Heidenhain has a reference point, and the reference point must be returned to zero after setting up to establish the origin. If it is a distance coded reference point, the zero-back operation is very simple and fast.
  • Description
  • Features
  • Specifications

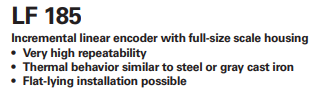

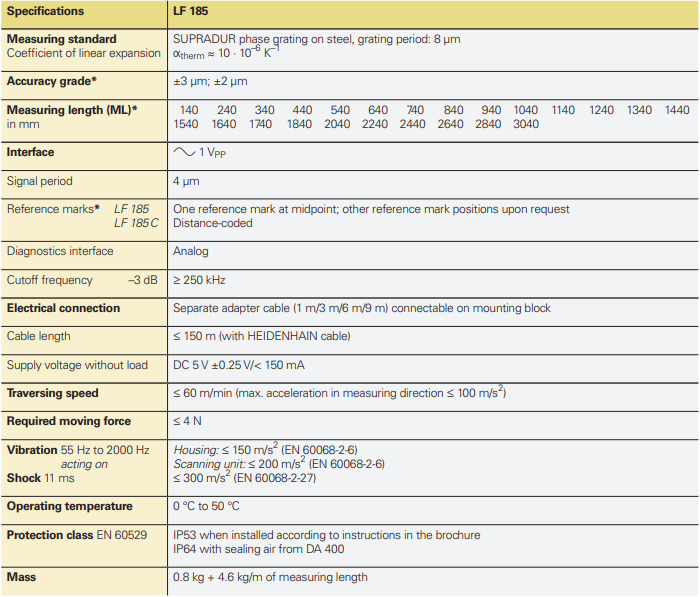

LF series incremental linear encoders adopts grating measuring standard with minimal grating distance. Therefore, it is particularly suitable for high repeatability applications.

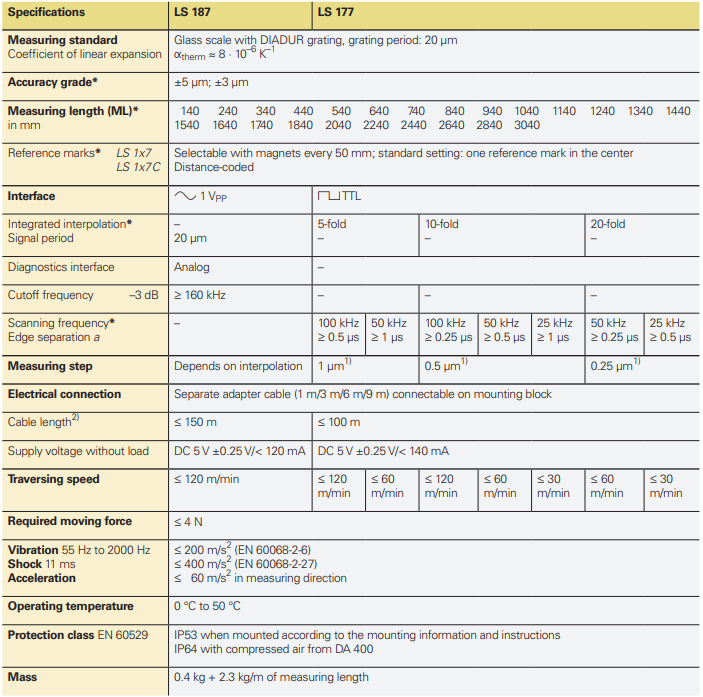

LS 600 series incremental linear encoders is used for simple positioning applications, such as manually operating machine tools.

LC 200 (Absolute) and LB (incremental) linear encoders are suitable for large length measurements. The measuring basis is a single piece steel strip grating ruler made by METALLUR or AURODUR lithography process. After the grating ruler shell is installed, the steel strip grating ruler is inserted into the ruler base and pre-tightened to the required tension force and the two ends are fixed on the machine casting.
